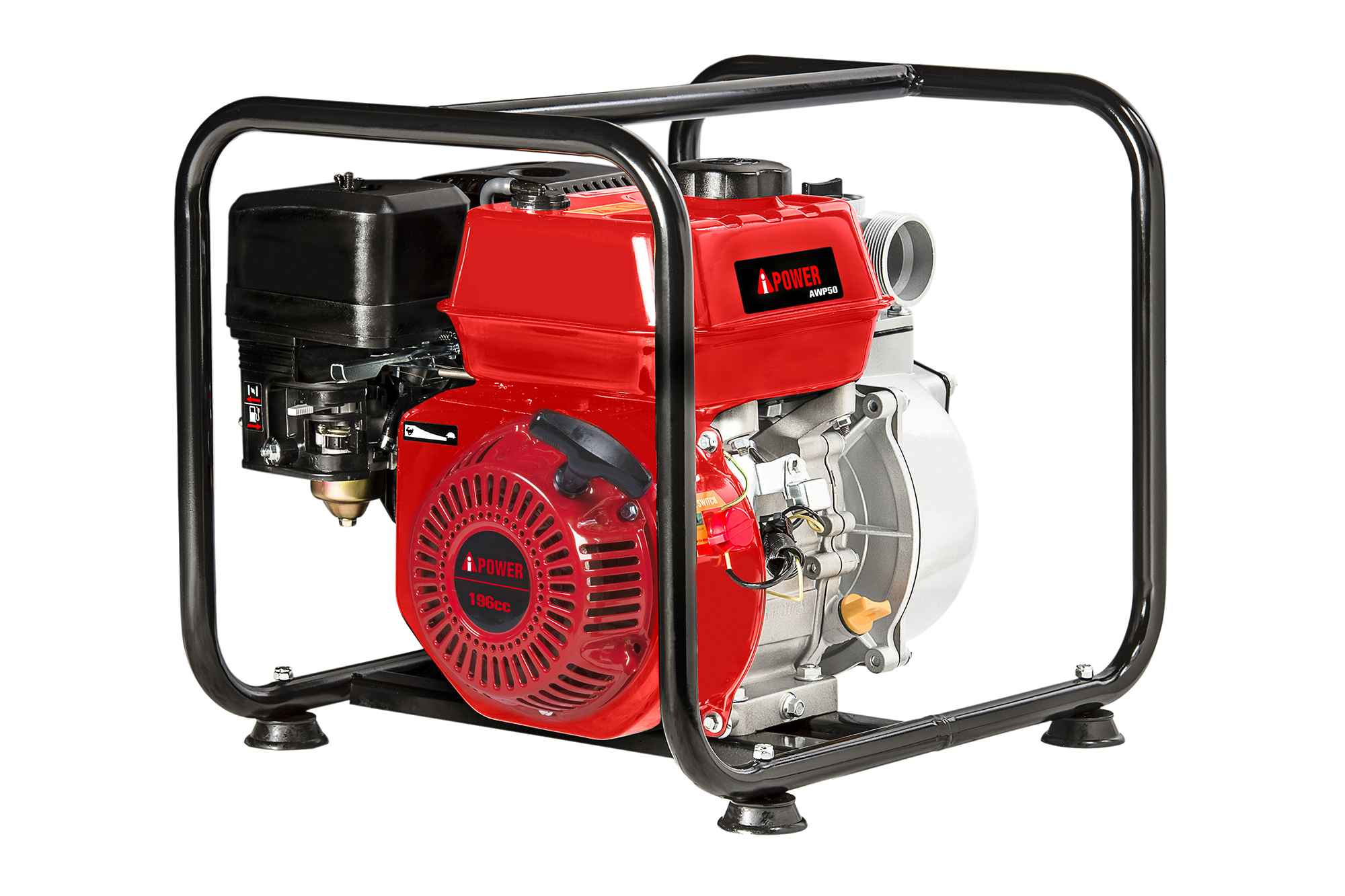

AWP50 2-IN. CLEAR WATER PUMP

Description

The A-iPower AWP50 Water Pump is ideal for general purpose use such as clear water irrigation, and removing water from pools, ponds, and basements. It has a two-inch diameter suction port and a two-inch diameter discharge port and displaces 126 gallons per minute with a 23-foot suction head lift and 98.4-foot total head lift.

It is equipped with a powerful 196cc/6.5hp gas engine that starts easily and provides ample power to the pump to ensure smooth trouble-free operation. The pump is self-priming for quick and easy operations. Its durable silicon carbide mechanical seals and cast iron volute and impeller keep this pump running longer and more efficiently. It’s fully enclosed heavy-duty frame provides added protection to withstand hard environment conditions.

Homeowners, gardeners, boat owners, groundskeepers, and others will find this a good choice.

EPA 49 States
Not for sale in California

Additional information

Model	AWP50
UPC Code	851217006404
Suction Port Diameter	2 in.
Discharge Port Diameter	2 in.
Outlet / Inlet Connection	Thread Male (NPT)
Engine	196cc/6.5hp
Starting System	Manual
Pump type	Self-Priming
Volute	Rigid Mounted Cast Iron
Impeller	5 Vane Cast Iron
Mechanical Seal	Silicon Carbide
Suction Head Lift	23 Ft. (7 m)
Total Head Lift	98.4 Ft. (30 m)
Flow	132 gpm (30m3/min)
Head Pressure	82 Ft.
Maximum Working Temperature	104 degrees F.
Minimum Working Temperature	45 degrees F.
DBA @ 7 Ft.	68
Oil Capacity	0.63 qt. (0.6 L)
Fuel Capacity	0.95 gal. ( 3.6 L)
Frame Chassis	0.9 in. / 22 mm
Inlet Hose Included	12 Ft.
Discharge Hose Included	20 Ft.
Gross Weight	57 lbs. (25 kgs)
Net Weight	51 lbs. (23 kgs)
Assembly Dimension	19.7 x 15.7 x15.7 in.
Packing Dimension	20.5 x16.5 x16.7 in.
Loading Quantity (20’/40’)	280/560
Warranty	1 Year
Emission Certification	EPA

Features

2 INCH NPT DIAMETER INLET AND OUTLET PORT

SUCTION HEAD LIFT: 23 FT.

TOTAL HEAD LIFT 98.4 FT.

POWERFUL 196cc/6.5hp 4-STROKE, SINGLE CYLINDER AIR-COOLED OHV ENGINE
Delivers maximum performance and reliability

DURABLE SILICONE CARBIDE MECHANICAL SEALS

RIGID MOUNTED CAST IRON VOLUTE

5 VANE CAST IRON IMPELLER FOR EXTENDED LIFE

OHV (OVERHEAD VALVE DESIGN)
For cooler and cleaner operation

EASY-TO-PULL RECOIL START

CAST IRON CYLINDER SLEEVE
Provides extended life

ALL-STEEL 0.95 GALLON TANK

DUAL ELEMENT AIR FILTLER
Protects engine while allowing extended service intervals

LOW OIL SHUTDOWN
Automatically protects engine from potential damage

LOW TONE MUFFLER WITH USDA APPROVED SPARK ARRESTOR
Provides quieter operation; 68 dBA @ 23 ft. sound rating

WATER PUMP DIMENSIONS
19.7 (l) x 15.7 (w) x 15.7 (h)

GROSS WEIGHT
57 lbs.
NET WEIGHT
51 lbs.

WARRANTY: 1 Year

Includes

12-Ft. Inlet Hose
20-Ft. Discharge Hose
Inlet Strainer
Hose Clamps, Joint, Coupling
Coupling Gasket
0.6 Qt. Engine Oil
Spark Plug Socket
Owner’s Manual

WARRANTY: 1-Year
